說明：
應用領域

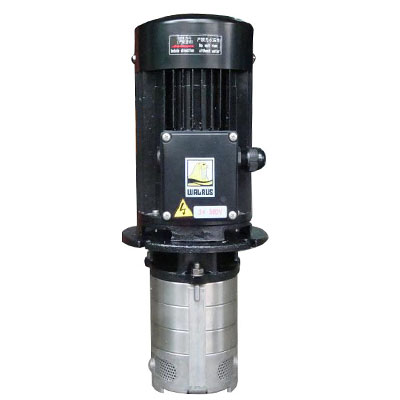

TPHK系列產品為浸入式直立多段離心泵浦(浸入式多級離心泵)。用于輸送機床冷卻液、潤滑液、冷凝水輸送、工業清洗設備和其他適合浸入式泵使用的場合，適應于不同溫度、流量和壓力范圍。
形式編碼
TPHK □T □ - □ S
| | | | |
| | | | | 全不銹鋼材質（非全不銹鋼型略）
| | | | 葉輪數目
| | | 導室數目
| | 額定流量(m3/h)
| 形式代號(浸入式多級離心泵)
水泵結構
TPHK浸入式多級離心泵為浸入自吸式，水泵與電機同軸，主要動作部件為不銹鋼材質。
電機
轉速：2900RPM順時針（風扇側）
頻率：50Hz
電壓范圍：1Φ200～240V；3Φ200～240/380～440V
防護等級：IP54
絕緣等級：F級
使用條件
環境溫度：Max.+50℃
液體溫度：+0℃～+90℃
工作壓力：Max.10kg/cm2
浸水高度：Min.65mm
產品具體型號性能參數如下
| 型 號 |
功率(W)
50HZ/60HZ
|
全揚程(m)
(50HZ時數據)
|
額定揚程(m)
(50HZ時數據)
|
額定流量
(m3/h)
|
出口口徑(mm) |
| TPHK2T3-1 |
320/360 |
9.5 |
7 |
2 |
20 |
| TPHK2T8-1 |
320/360 |
9.5 |
7 |
2 |
20 |
| TPHK2T3-2 |
450/560 |
18 |
14 |
2 |
20 |
| TPHK2T5-2 |
450/560 |
18 |
14 |
2 |
20 |
| TPHK2T9-2 |
450/560 |
18 |
14 |
2 |
20 |
| TPHK2T3-3 |
530/750 |
27 |
20.5 |
2 |
20 |
| TPHK2T4-3 |
530/750 |
27 |
20.5 |
2 |
20 |
| TPHK2T5-3 |
530/750 |
27 |
20.5 |
2 |
20 |
| TPHK2T6-3 |
530/750 |
27 |
20.5 |
2 |
20 |
| TPHK2T8-3 |
530/750 |
27 |
20.5 |
2 |
20 |
| TPHK2T11-3 |
530/750 |
27 |
20.5 |
2 |
20 |
| TPHK2T4-4 |
620/910 |
37 |
27 |
2 |
20 |
| TPHK2T6-4 |
620/910 |
37 |
27 |
2 |
20 |
| TPHK2T5-5 |
700/1060 |
46 |
34 |
2 |
20 |
| TPHK2T6-5 |
700/1060 |
46 |
34 |
2 |
20 |
| TPHK2T6-6 |
960/1340 |
54 |
41 |
2 |
20 |
| TPHK2T8-6 |
960/1340 |
54 |
41 |
2 |
20 |
| TPHK2T9-6 |
960/1340 |
54 |
41 |
2 |
20 |
| TPHK2T10-6 |
960/1340 |
54 |
41 |
2 |
20 |
| TPHK2T11-6 |
960/1340 |
54 |
41 |
2 |
20 |
| TPHK2T7-7 |
1200/1580 |
62 |
46 |
2 |
20 |
| TPHK4T2-1 |
570/600 |
9.5 |
7 |
4 |
20 |
| TPHK4T3-1 |
570/600 |
9.5 |
7 |
4 |
20 |
| TPHK4T2-2 |
650/960 |
18.5 |
13 |
4 |
20 |
| TPHK4T3-2 |
650/960 |
18.5 |
13 |
4 |
20 |
| TPHK4T4-2 |
650/960 |
18.5 |
13 |
4 |
20 |
| TPHK4T6-2 |
650/960 |
18.5 |
13 |
4 |
20 |
| TPHK4T3-3 |
850/1270 |
28 |
19.5 |
4 |
20 |
| TPHK4T4-3 |
850/1270 |
28 |
19.5 |
4 |
20 |
| TPHK4T5-3 |
850/1270 |
28 |
19.5 |
4 |
20 |
| TPHK4T6-3 |
850/1270 |
28 |
19.5 |
4 |
20 |
| TPHK4T8-3 |
850/1270 |
28 |
19.5 |
4 |
20 |
| TPHK4T4-4 |
1080/1580 |
37 |
28 |
4 |
20 |
| TPHK4T5-4 |
1080/1580 |
37 |
28 |
4 |
20 |
| TPHK4T6-4 |
1080/1580 |
37 |
28 |
4 |
20 |
| TPHK4T5-5 |
1400/2050 |
46 |
37 |
4 |
20 |
| TPHK4T8-5 |
1400/2050 |
46 |
37 |
4 |
20 |
| TPHK4T6-6 |
1600/2380 |
58 |
46 |
4 |
20 |
| TPHK4T8-6 |
1600/2380 |
58 |
46 |
4 |
20 |
| TPHK4T7-7 |
1800/2600 |
68 |
55 |
4 |
20 |
| TPHK4T8-7 |
1800/2600 |
68 |
55 |
4 |
20 |
| TPHK8T6-2 |
1200/1650 |
20.5 |
16 |
8 |
32 |
| TPHK8T9-2 |
1200/1650 |
20.5 |
16 |
8 |
32 |
| TPHK8T3-3 |
1550/2350 |
34 |
28.5 |
8 |
32 |
| TPHK8T6-3 |
1550/2350 |
34 |
28.5 |
8 |
32 |
| TPHK8T9-3 |
1550/2350 |
34 |
28.5 |
8 |
32 |
| TPHK8T4-4 |
2200/3000 |
44.5 |
38 |
8 |
32 |
| TPHK8T6-4 |
2200/3000 |
44.5 |
38 |
8 |
32 |
| TPHK8T5-5 |
2600/3900 |
54 |
45.5 |
8 |
32 |
| TPHK12T6-1 |
1400/2000 |
18.5 |
5 |
12 |
32 |
| TPHK12T6-2 |
3120/4150 |
40 |
28 |
12 |
32 |
| TPHK12T9-2 |
3120/4150 |
40 |
28 |
12 |
32 |
聲明：
1、以上數據僅供參考，產品具體性能以實物為準；
2、產品如有調整，恕不另行通知。
