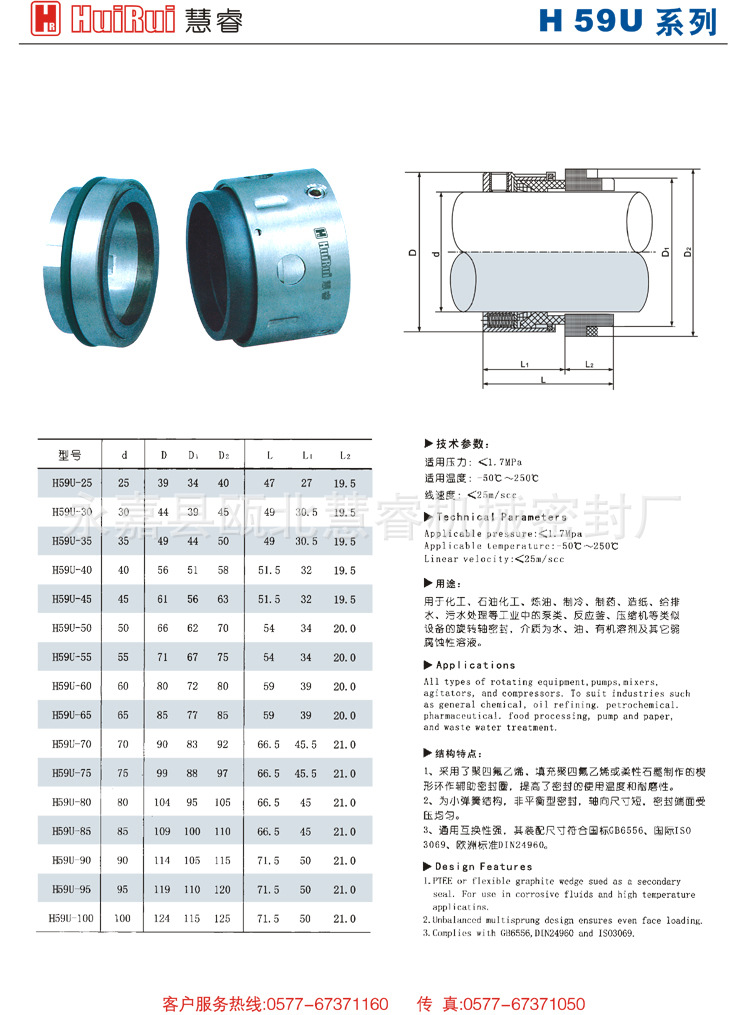

H59U-43WAD槽，合金對石墨氟膠。
H59U-43暫時沒有現貨，貨期1-3天�？梢栽谫徺I前先咨詢客服是否有現貨。
………………………………………………………………………………………………………………………………………………………………
一、技術參數
適用壓力：≤1.7Mpa
適用溫度：-50℃~250℃（氟膠或聚四氟乙烯）
線速度：≤25m/scc
二、用途
用于化工、石油化工、煉油、制冷、制藥、給排水、污水處理等工業中的泵類、反應釜、壓縮機等類似設備的旋轉軸密封，介質為水、油、有機溶液及其他弱腐蝕性溶液。
三、結構特性
1.采用聚四氟乙烯、填充聚四氟乙烯或柔性石墨制作的模型環作輔助密封圈，提高了密封的使用溫度和耐磨性。
2.為小彈簧結構，非平衡型密封，軸向尺寸短，密封端面受壓均勻。
3.通過互換性強，其裝配尺寸符合國標。
………………………………………………………………………………………………………………………………………………………………
First, technical parameters
Apply pressure: less
than 1.7Mpa
Applicable temperature: ~250 (-50), (f or PTFE)
Line speed:
25m/scc
Two, use
For chemical, petrochemical, oil refining, refrigeration,
pharmacy, to the axis of rotation of the drainage, sewage treatment and other
industrial pumps, reaction kettle, compressors and other similar equipment
sealing medium is water, oil, organic solvent and other weak corrosive
solution.
Three, structural characteristics
1 the use of PTFE, PTFE or
flexible graphite made of the model ring as an auxiliary sealing ring, improve
the use of sealing temperature and wear resistance.
2 for the small spring
structure, the non - balanced seal, the axial size is short, the seal face is
compressed.
3 by the strong exchange, the size of the assembly
line.
....................................................................................................................................................................................
